After Effects Mask [2022] (All You Need To Know)
One of the main features that sets Adobe After Effects apart from other software is its ability to create masks.
In this post, we’ll take a look at how masks work in After Effects and some tips for using them effectively.
We’ll also cover a few ways to create masks with different shapes.
So whether you’re new to masks or just looking for some tips on how to get more out of them, read on!
See Other Related Articles:
Things You Need To Know Before Using After Effects Mask
1. What is an After Effects mask, and how does it work?
The basic concept of a mask in After Effects is a shape that can be used to either hide or reveal a specific section of a layer (or several layers) on a composition.
To be more specific, a mask is a path or contour made up of vertices that can be adjusted and/or animated.

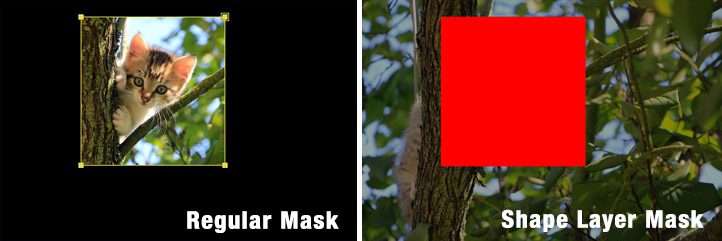

2. What are the different types of masks in After Effects?
In After Effects, there are two types of masks that you can employ.
– a normal face mask
– layer mask for the form.
TIPS: There is something you should be aware of when creating a mask.
If you choose your layer on your timeline, you will see the following: You’ll be creating a normal mask.
If you don’t choose your layer on your timeline, the following will happen: You will make a shape layer mask for this purpose.
Regular masks are frequently used for rotoscoping and morphing because they allow you to mask several frames in a short period of time.
3. What is the best way to create a mask in After Effects?
Pick the image or video that you want to use from your timeline.
– In the top tools bar, select the shape tool icon after the after-effects shape tool symbol (Shortcut: Press Q)
– In your composition, draw a rectangle mask on your image or video to use as a mask.
The following is an example of an After Effects regular Mask:
TIPS: Using the Toggle Mask and Form Path Visibility icon, you may toggle the visibility of your mask outline and shape path on and off, as needed.
Mask and Shape Path Visibility Icons can be toggled on and off.
The bottom of your composition is where you should put this.
4. What is the best way to change a mask in After Effects?
There are numerous methods for modifying after-effects masks.
I’ll go over the most important points below.
- One mask point at a time can be moved.
- Select the layer on your timeline by clicking on it.
- Press the V key (Selection tool)
- Begin shifting each point one at a time.
- Multiple mask points can be moved at the same time.
– On your timeline, select the layer you want to work with.
– Hit the M key (Shortcut to access the mask properties)
– Select the Mask Path option.
– Press the letter V. (Selection Tool)
– Select one point/vertex by clicking on it.
All of the points should be able to be moved together as a unit.
Masks can be resized or rotated.
– On your timeline, select the layer you want to work with.
– Hit the M key (Shortcut to access the mask properties)
– Select the Mask Path option.
– Double-click on any point or vertex to choose it.
By moving your cursor to the corner of a layer, you should see the resize cursor appear, which should allow you to scale the layer as needed.
– Hold down the Shift key to scale the image appropriately.
Alternatively, by moving your mouse farther into the corner, you should be able to see the rotate cursor, which will enable you to rotate your mask.
5. What are the Mask Modes in After Effects and how can I use them?
After Effects has seven different masking settings to choose from.
When you select None from the drop-down menu, you will see the following options: Add, Subtract, Intersect, Lighten, Darken, Difference.
6. What is the process for creating a Shape Layer Mask in After Effects?
On your timeline, be certain that no layers are chosen.
– In the top tools bar, select the shape tool icon after the after-effects shape tool symbol (Shortcut: Press Q)
– Create a rectangle with your pencil.
It is important to ensure that your rectangle shape layer is placed above the image/video layer.
• Choose your image or video and set the track matte to Alpha. •
For further information, see the following example or download the After Effects Shape Layer mask project.
Tips: Once you’ve built your form layer mask, you can rapidly change the fill color and stroke color by selecting Edit > Fill Color and Stroke Color from the drop-down menu.
– Simply hold down the Alt key and click on the fill color or the stroke color, as shown in the demo below.
7. In After Effects, use the Shape Tool to create shapes.
You can build a mask or shape layer with a variety of paths by pressing the Q key (shortcut: Press Q).
The rectangle is the mask shape tool (default shape)
– Rectangle Tools with a Rounded Corner
The Ellipse Tool is a tool for drawing ellipses.
The Polygon Tool is a tool for drawing polygons.
– Star Instruments
Part 1: What is a Mask and How Does It Work?
In After Effects, a mask is a transparent form that instructs the software to concentrate its focus on a specific section of your composition.
The tool can be used to hide or show a portion of a layer or an item.
In contrast to regular masks, which are attached to and reside within the layer that they are intended to affect, Shape Layers exist as distinct objects that can function in a manner similar to masks.
Masks are extremely versatile tools that may be used for a variety of tasks such as hiding and revealing text or chopping out a frame.
Animations can begin with a mask placed over an object, such as text, and then slide out to show the object beneath the layer of masking.
Instead, they can remain immobile in the frame in order to crop out any undesired aspects.
Part 2: The tutorial shows you How to Create and Manage Masks
So, what precisely is the procedure for creating masks in Adobe After Effects?
After reading this section, you’ll be able to use masks like an expert in no time.
There are two options for accomplishing this. The first of these is called Reveal Masking.
Step 1: Choose the layer that you’d like to mask out of view.
Step 2: Press the Q key to bring up the rectangle shape tool on your keyboard.
Step 3: Using your mouse, click and drag the frame to draw a mask around the object you want to reveal.
Everything else in the frame that isn’t hidden beneath the mask will be hidden as a result.

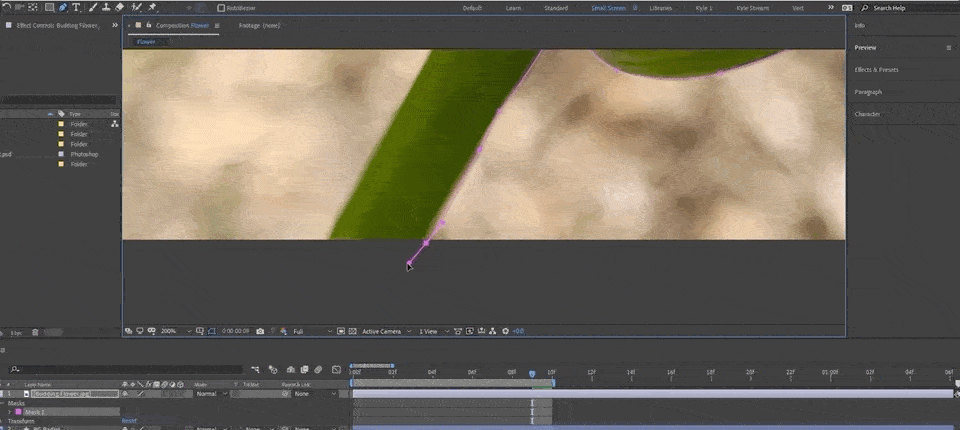

The pen tool can be used to build a custom shape mask in After Effects, which is the second method of employing masks in the software.
Step 1: Click on the pen tool or press G on the keyboard to begin.
Step 2: The second step is to click on various locations around the frame to create a bespoke form.
If the shot is static, try outlining an object that you’d like to remove from the frame to see if it works.
Step 3: make the mask and then go to Time > Freeze Frame in order to accomplish this.
While anything not masked will continue to play as normal, the mask will cause the time to stop, allowing you to be more creative with how you make things disappear.
More information on working with several masks may be found here.
If you only employ one mask in your composition, it is unlikely that you will achieve success.
Having several masks over multiple layers will be required on a regular basis in your projects.
After Effects has a useful tool to assist you in keeping track of all of your assets, but it might be difficult to remember everything.
By default, After Effects uses the color yellow for all masks, but if you want to separate them and make them easier to work with, you may tell After Effects to cycle through the mask colors for new masks.
This will make it easier to deal with new masks.
To accomplish this, follow these steps:
Step 1: Select Edit > Preferences > Appearance from the menu bar.
Step 2: Make a selection from the Cycle Mask Colors drop-down menu.
Every time you make a new mask, the color of the mask will change, making it easier to keep track of them.
In the event that you don’t want to make any further modifications to a mask, you can lock the layer to prevent anything else from accidentally changing it.
When you hover your mouse over a layer, you will see the Padlock icon, which allows you to lock the layer in place and prevent any future changes.
To be extra certain, you may turn off this feature by selecting Layer > Mask > Hide Locked Masks from the menu bar.
This will make the locked masks completely disappear from the project view. Just to be on the safe side!
Part 3: What is the best way to edit and alter a form layer mask?
The point/vertex cannot be moved when a default shape layer mask is created such as a rectangle, ellipse, or polygon, as you will quickly discover when you build one of these shapes.
In order to alter and manipulate the point/vertex, you must right-click on the path and select Convert to Bezier path from the context menu that appears.
In order to modify or animate your shape layer mask, there are several useful edit tools (Merge Paths, Offset Paths, Pucker & Bloat, Repeater.) that can be found under the Add menu (screenshot below).
I recommend that you experiment with each tool to become familiar with them; if you require more detailed information on each add menu tool, you can also visit this page on the Adobe website.
Part 4: Using After Effects, how do you build a custom mask?
The process of creating a custom shape in After Effects is not very effective and will slow down your production; thus, we will utilize Illustrator first and follow the methods outlined below.
1. Open Adobe Illustrator and construct a vector shape, as shown in the following example.
2. Save your Illustrator file and then open After Effects to begin working.
3. Create a new Illustrator file and drag it into your composition like in the example below
Drag a picture or video below your mask to make it appear more prominent.
4. From the Track Matte drop-down menu, select Alpha Matte from the list.
As shown in the screenshot below, your custom shape mask should now be showing your image.
Part 5: What is the best way to edit and alter a form layer mask?
The point/vertex cannot be moved when a default shape layer mask is created such as a rectangle, ellipse, or polygon, as you will quickly discover when you build one of these shapes.
In order to alter and manipulate the point/vertex, you must right-click on the path and select Convert to Bezier path from the context menu that appears.
In order to modify or animate your shape layer mask, there are several useful edit tools (Merge Paths, Offset Paths, Pucker & Bloat, Repeater…) that can be found under the Add menu (screenshot below).
I recommend that you experiment with each tool to become familiar with them; if you require more detailed information on each add menu tool, you can also visit this page on the Adobe website.
Part 6: Using After Effects, how do you build a custom mask?
The process of creating a custom shape in After Effects is not very effective and will slow down your production; thus, we will utilize Illustrator first and follow the methods outlined below.
1. Open Adobe Illustrator and construct a vector shape, as shown in the following example.
2. Save your Illustrator file and then open After Effects to begin working.
3. Create a new Illustrator file and drag it into your composition like in the example below
Drag a picture or video below your mask to make it appear more prominent.
4. From the Track Matte drop-down menu, select Alpha Matte from the list.
As shown in the screenshot below, your custom shape mask should now be showing your image.
Part 7: How to Include Animation and Movement in Your Design
Masks aren’t limited to being static objects that conceal or show specific elements within a frame.
You may animate them in the same way that you would any other After Effects element to create smooth, elegant transitions and reveals.
To animate a mask, do the following:
Step 1: In step one, choose the mask that you want to animate within the layer that it is now residing within.
Step 2: Collapse the drop-down menu and click the stopwatch next to Mask Path in order to begin.
An additional keyframe will be created, as well as the mask’s initial location.
Step 3: Advance the playhead by one second in time.
Step 4: Align the mask to its final position before proceeding.
Step 5: Press the stopwatch button once more. In the meantime, the mask will move from its initial position to its final position in the amount of time that you have pushed the playhead to.
Add keyframes to the mask route as it progresses to slow it down, accelerate it up, smooth out the animation, and overall move the mask in different directions.
Then, to generate a keyframe, simply set your playhead where you want the particular stage of animation to conclude, tweak the mask position or size, and hit the stopwatch button once more to complete the process.
What distinguishes Adobe After Effects from Adobe Premiere Pro?
The Adobe Premiere Pro video editing software, which we’ve already discussed, is another legacy video editing program that has become a true cornerstone in the film and video business.
(And, if you’re interested, here’s an excellent guide to Premiere Pro from the professionals that you should bookmark for future reference.)
While Premiere Pro is a fantastic NLE (non-linear editor) for editing your video projects on a straightforward timeline and with some basic effects After Effects is a far superior editing system that offers significantly more in terms of visual effects, motion graphics, and compositing capabilities.
Why should I experiment with After Effects?
To be completely honest, After Effects isn’t a program for everyone.
At least not when you’re just getting started in the film and video industry.
Many video professionals may find that tools such as Adobe Premiere Pro, Apple’s Final Cut Pro, or Blackmagic’s DaVinci Resolve are sufficient for their needs.
After Effects, on the other hand, is by far the most powerful – as well as the most accessible – tool for anyone who is serious about stepping up their game with some beautiful visual effects and motion graphics.
Our Final Thoughts
Masks are among the most essential tools in After Effects, and mastering them will put you on the fast track to generating stunning motion graphics in a short amount of time.
As soon as you’ve become familiar with the various methods of making a mask, you may combine several of them into a single composition and alter the mask modes to alter how the masks interact with one another.
Use keyframes in the Mask Path tool to animate your masks and create smooth and seamless transitions at the end of the process.
Frequently Ask Questions
What is the cause of my mask not working in After Effects?
There could be a variety of reasons for this. If your mask operator is set to none, modify it to the addition operator instead.
To determine which mask is the most effective if you have more than one, swap the operator from add to remove to intersect and experiment with the results.
When using this option, the sequence in which your masks appear on the timeline (from top to bottom) is important.
What is causing my mask to become white after-effects?
Those white lines are the result of further refining the mask formed by the difference matte after it has been applied.
All of this was done with only two layers.
The one screen that has been capped is shown below.
Layer it so that the difference matte is above the masks, and then apply it as an Alpha Matte to the masking layer using the Track Matte on the masking layer.
What is the best way to get rid of the fill color in After Effects?
Simply turning off the eyeball or deleting the layer after it has been created is all that is required.
Click on the fill name if you want the fill to be empty; you will be offered further alternatives; you can also alt+click on the fill color to switch between different modes.
