Adobe Dimension [2022] (Step-by-Step Tutorial)

Have you ever wished you could just snap your fingers and have a perfect 3D rendering premiere pro of your product, scene, or invention?

With Adobe Dimension, now you can! This powerful new software from Adobe allows anyone to create stunning 3D renders with ease.

Check out this blog post for a quick tutorial on how to get started on your dimension cc.

Dimension is still in beta testing, so be sure to sign up for the beta program to get early access.

I can’t wait for you to start creating your own 3D masterpieces with this amazing new tool!

See Other Related Articles:

• Best 5k and 6k camera [Top 6 Today!]
• Sony a7iii vs a7riii [The Ultimate Comparison]

What is Adobe Dimension?

Adobe cc Dimension is one of the newest pieces of 3D software available on the market today.

It was created in 2017 and is mostly used to display product idea displays.

In addition to being created for simple concepts, the application works well with other raster tools to assist in putting together what your product would look like plastered on a can or wrapped around a box.

Adobe Dimension CC makes it simple for graphic designers to produce high-quality, lifelike 3D pictures using a variety of different techniques.

In order to create product photos, scene visualizations, and abstract art, it blends 2D and 3D components together.

Here’s a detailed product review about Adobe Dimension

Adobe Dimension Specs

• Enterprise Licensing Subscriptions
• Microsoft Windows
• Multi-North American Language
• 1 user level
• 2 (10-49) Macintosh

Is it possible to get Dimension for free?

Dimension is available for download and trial for seven days as a no-obligation offer.

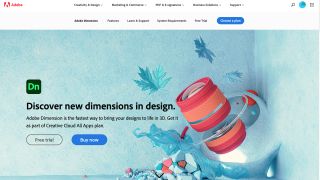

To get started, navigate to the main Dimension page on Adobe’s website (which is usually the first search engine result for “Adobe Dimension”) and click on the Free Trial button.

When registering, you will be offered the option of either trying Dimension alone or the entire Creative Cloud suite.

When you sign up for the trial, you will be required to provide Adobe with your payment information, and after the week is up, a paid membership will be initiated immediately.

If you don’t want to commit to this, make sure to cancel your subscription before the trial period expires, otherwise, you may be charged a cancellation fee after the trial period has ended.

During your seven-day trial period, you can experiment with Dimension’s different features and decide whether or not you want to continue using it.

There is no way to continue using it for free after the trial period has ended, so you’ll have to check into the various payment options.

In addition, we’ve compiled a list of the greatest productivity tools.

How do I go about purchasing Dimension?

If you go to the Dimension page on Adobe’s website and click either Buy Now or Choose a Plan, you’ll be led to a page that lists all of your purchasing options.

It’s important to note that all of the options are subscription-based, and there is no opportunity to purchase the software outright for a one-time charge.

Alternatively, you can subscribe to Dimension on its own or as part of the Creative Cloud All Apps bundle, which includes more than 20 desktop and mobile applications.

Some of these, such as the image-editing tool Photoshop and the vector design app Illustrator, can be used in conjunction with Dimension.

In the event that you are expected to utilize three or more Creative Cloud products, the All Apps subscription is likely to be the most cost-effective option for you.

Do you know what the cost of Adobe Dimension is?

The basic Dimension subscription is priced at $20.99 per month (£19.97 per month, AU$29.99 per month).

Alternatively, you can subscribe on an annual basis for $239.88 / £238.42 / AU$343.07 ($239.88 / £238.42 / AU$343.07 per month).

It is more cost-effective to pay for a full year of Dimension at once rather than a monthly subscription for 12 months.

But, if you are not intending to use Dimension every month, it is more cost-effective to pick up the monthly subscription when you need it and to pause it when you do not need it.

Standard subscription costs $52.99 / £59.94 / AU$76.99 per month for the Creative Cloud All Apps package, though this includes an annual commitment; if you cancel before the year is up, you must pay a cancellation fee equal to 50 percent of the remaining subscription cost.

If you cancel after the year is up, you must pay a cancellation fee equal to half of the remaining subscription cost.

A monthly membership price of $79, 49, 75, 85, and 114, 99 dollars can be paid in lieu of this commitment, and the subscription can be paused at any time without incurring a fee.

Alternatively, you can pay $599.88 / £596.33 / AU$871.07 for a full year’s subscription.

Please keep in mind that while these prices were accurate at the time of writing, pricing in countries outside of the United States is subject to fluctuations in exchange rates.

Additionally, you have the option to cancel any Adobe subscription during the first 14 days and receive a complete refund.

Teachers and students are eligible for discounts on dimensions

For a limited time, Adobe is offering a student and teacher discount program that allows them to pay the price of one app for the entire Creative Cloud bundle, which includes Dimension, all of the other desktop and mobile tools, and 100GB of online storage.

This has a monthly fee of $19.99 / £16.24 / AU$21.99 for the first year, and then a monthly rate of $29.99 / £25.28 / AU$43.99 for the following year.

You’ll need to commit to a year at a time, just like you would with the main Creative Cloud subscription for adobe photoshop cc.

Prepaying for a full year is an option, but it does not result in a lower cost.

Adobe requires verification of eligibility, and the simplest method to provide this is to use a school-issued email address when signing up for the program.

What is the best way to get started with Dimension?

Because Adobe Dimension is a comprehensive and feature-rich application, it has a steep learning curve for photoshop elements.

In the event that you’re having trouble getting started, the tutorials part of the Adobe substance website might assist you in honing your talents.

Creative Blog has produced a list of advice for getting started with Dimension, which is another excellent resource to have on hand.

Step-By-Step Tutorial for Adobe Dimension

What We’re Going To Make

We will build an abstract adobe illustrator 3D image using Adobe Photoshop and Dimension in this simple 3D design tutorial (which includes a video alternative if you prefer).

When we’re finished with Photoshop, we’ll transfer over to Dimension to construct our 3D scene cc library, produce beautiful, realistic lighting, apply real-world materials and eventually render out our 3D visuals.

However, while this lesson will guide you through the process of developing a specific visual, the technique and processes may be used in any design project.

Once you’ve gotten a feel for Dimension by following these instructions, I invite you to branch out and see what you can come up with on your own.

Here’s the image we’ll be working on today, rendered out to illustrate multiple angles and perspectives from different viewpoints.

What you’ll need to get started

• Adobe Photoshop and Adobe Dimension are both available with an Adobe Creative Cloud subscription.
• MeshLab is a 3D modeling software (Optional)

If you prefer to follow along visually rather than by following the steps below, you may watch this video tutorial instead.

It goes through the same processes as before and gets the exact same outcome.

Step 1: Using Photoshop, we will design our Shapes.

We’ll begin by transforming flat artwork into 3D objects, which will be our starting point.

After that, we’ll convert these 3D objects into Dimensional objects (in the future, you can expect Adobe to bring some of the native 3D creation functionality into Dimension itself).

We will turn flat circular circles into 3D objects for the purpose of simplicity, but you are free to use more sophisticated designs if you choose.

Okay, let’s get this over with.

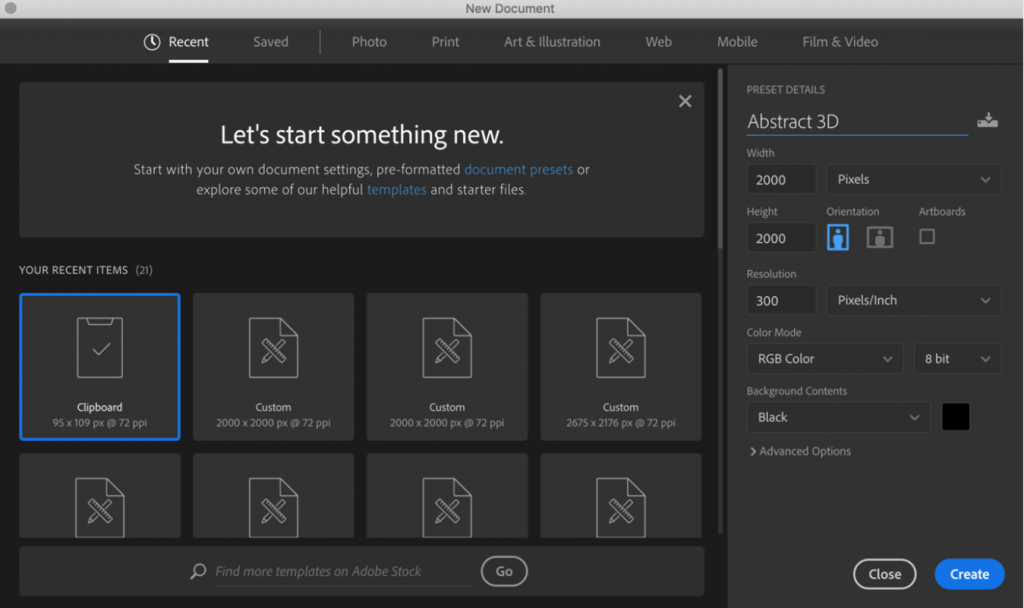

To begin, open Photoshop and create a new document.

Set the resolution to 2000 x 2000 pixels, and the backdrop color to black.

Let’s get started with our circular shapes.

Set the Ellipse tool to Shape mode and begin laying out some circles on your canvas with it selected.

Make sure that the ‘Combine Shapes’ option is selected in your Shape settings so that all of your shapes are created in a single layer.

When arranging your circles, make sure to include both large and little circles.

This will result in great variance in the shape of your shape later on.

Advice from the experts: It’s also beneficial to have your shape in the Path Options set to “Circle” rather than “Unconstrained.”

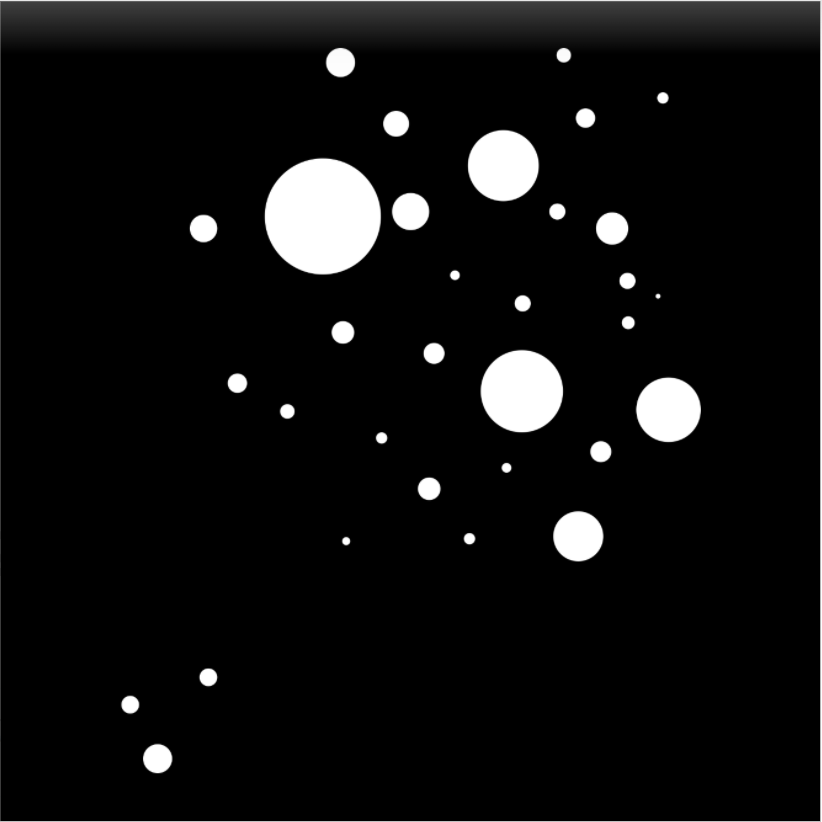

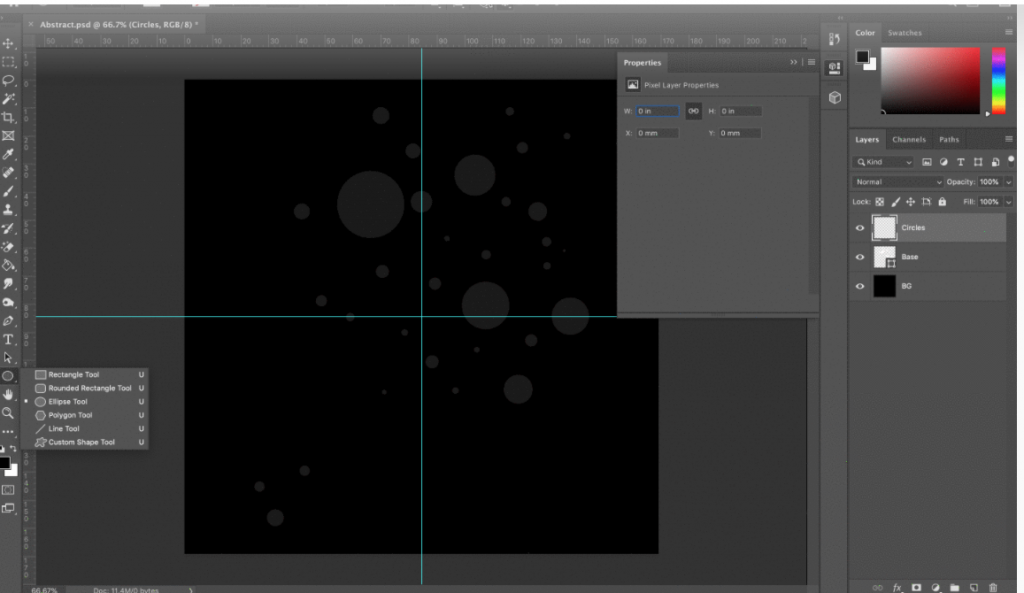

It should look something like this when you draw your circles:

Step 2: Extruding the Shapes

We will now take our two-dimensional forms and magically convert them into three-dimensional objects.

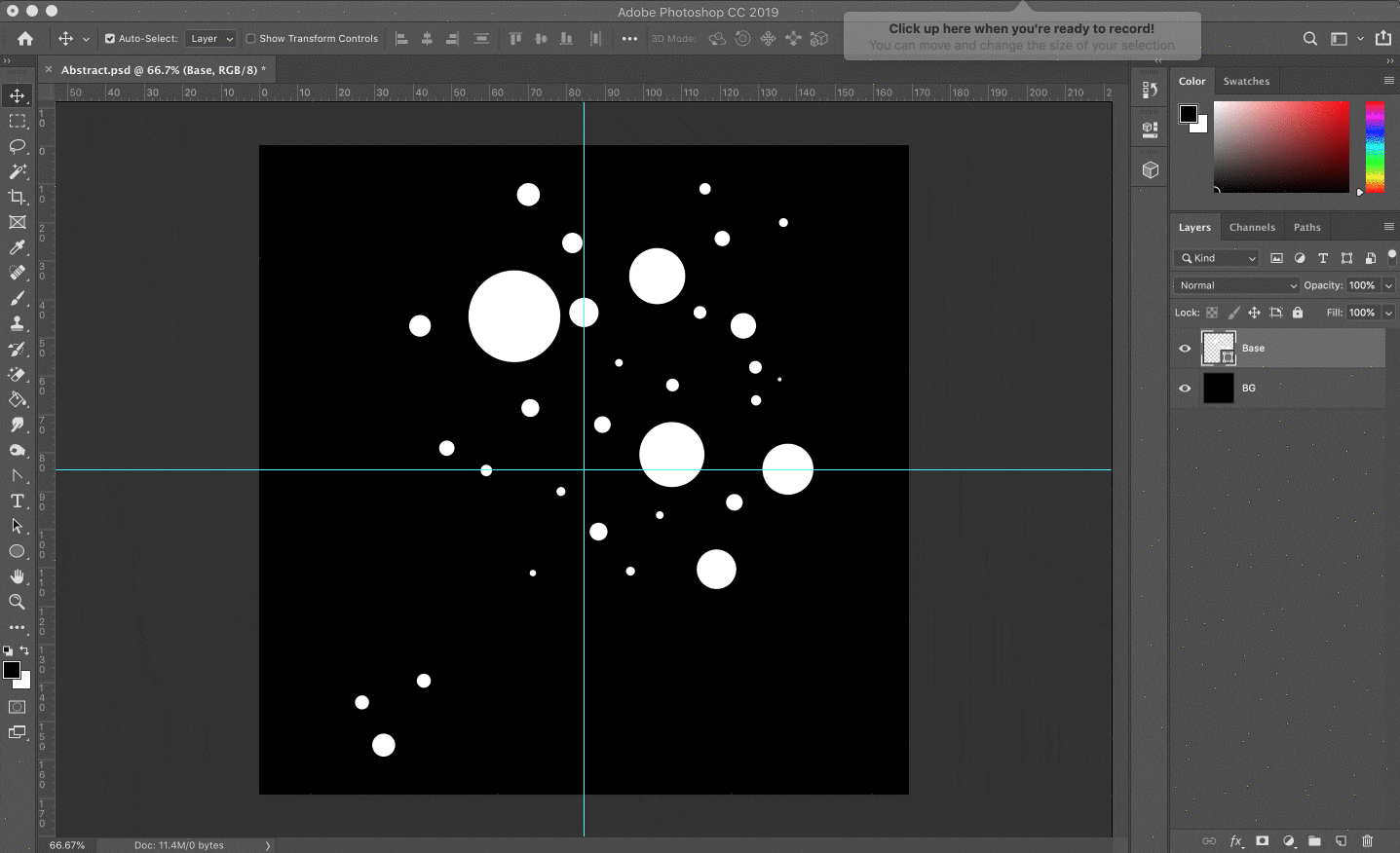

In Photoshop, select the ‘New 3D design Extrusion from Selected Layer’ option from the 3D menu at the top of the screen.

You should now notice that all of your circles have transformed into cylinder forms.

Caution should be exercised when using circles that are either too small or too tightly spaced together.

The extrusion process will fail if your shapes are too complex, and you will receive an error notice as a result.

Pro tip: You may rotate the 3D canvas by using the camera tools in the lower-left corner of your screen to obtain a better look at your object.

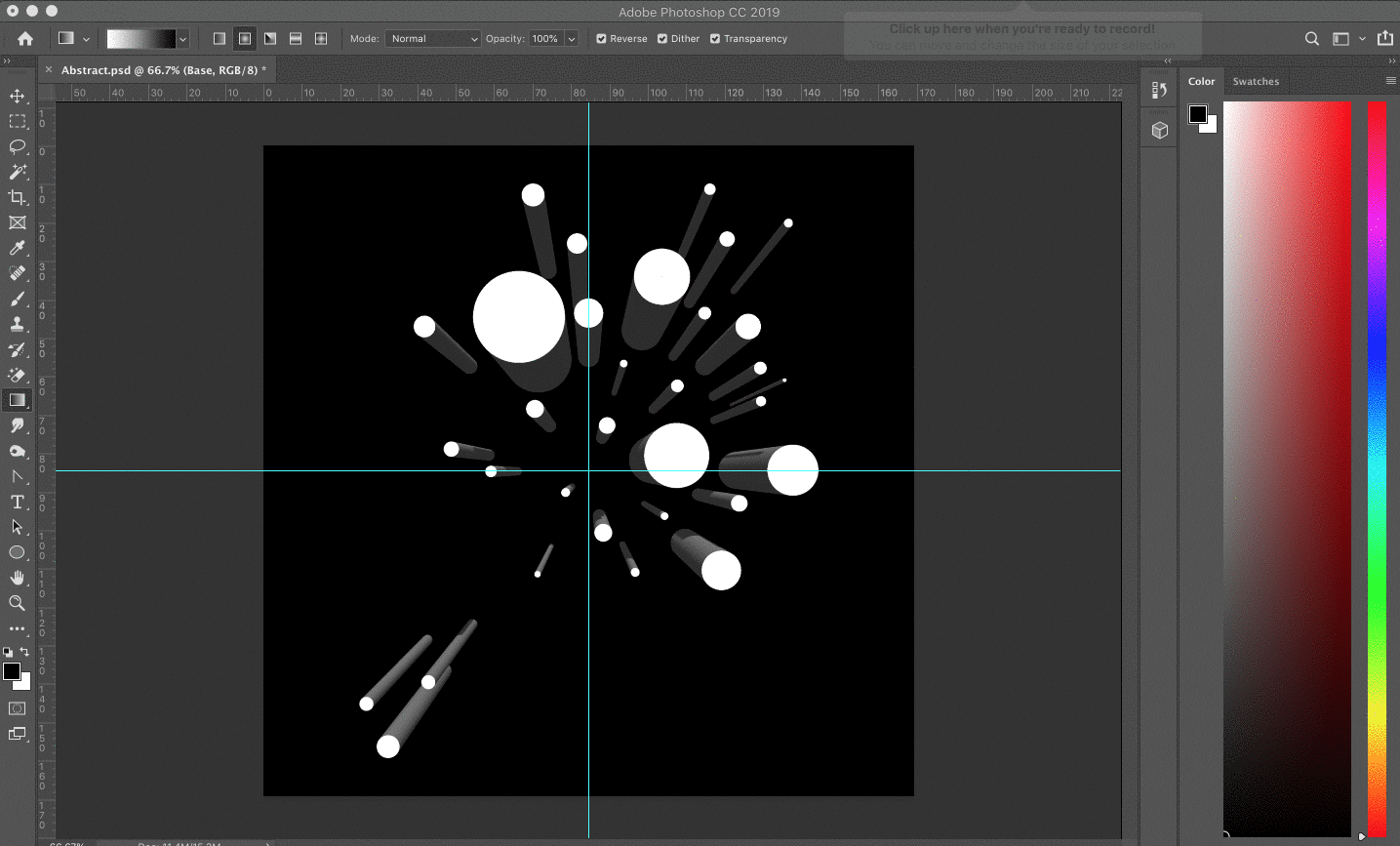

Afterward, with your scene selected, navigate to the 3D model Properties box and check for the Deform choices there.

(If you do not see this choice, it is likely that you have picked the 3D mesh layer rather than your scene.)

With these options, we will be able to construct, bend, and twist our cylinders to form abstract things.

Please feel free to experiment with the choices I’ve provided below to construct our abstract shape, but remember that you can use any combination of these settings to create your own unique shapes and effects.

Here is the result you will get if you use these precise settings:

Don’t be concerned if yours does not exactly resemble mine from your adobe systems.

Use alternative extrusion depths, twists, and tapers in the preceding phase and you will get a completely distinct result.

Let’s finish off our tube shapes with a nicely rounded cap.

Simply navigate to the cap options while still in the Properties window and set a cap.

Here’s what I used to make a lovely beveled edge on my project.

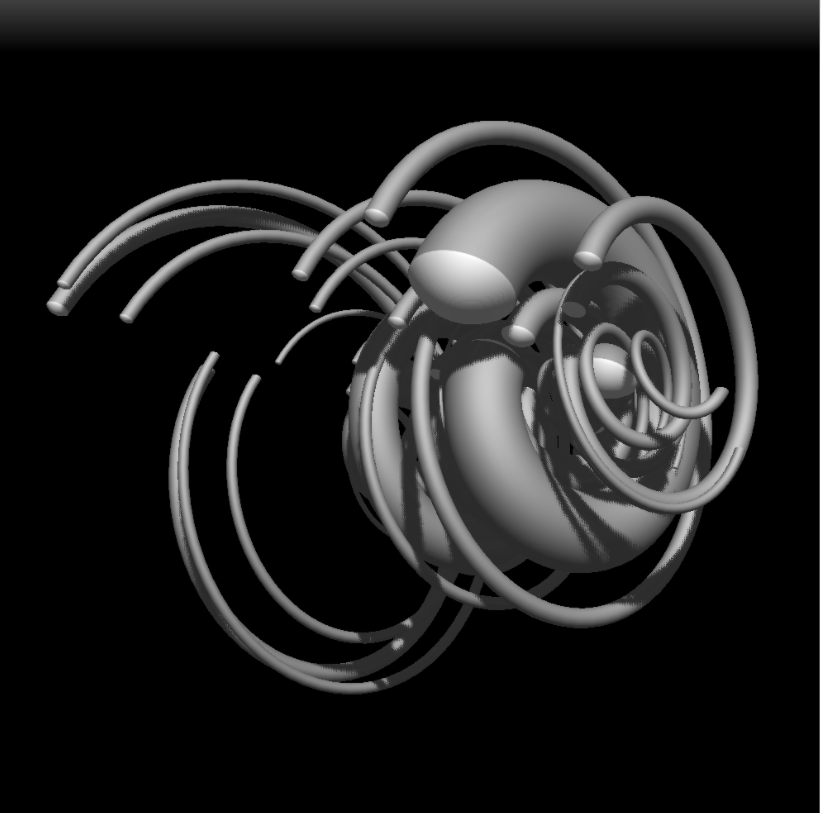

As a result of our updated cap settings, here is the most recent result:

Optional: enhancing our 3D object’s performance

As an optional step, you can use a free application called MeshLab to optimize the geometry of your 3D mesh and clean up any jagged edges that may have formed during the modeling process.

To add more geometry, smooth out your edges, and do the basic cleanup, make use of the subdivision tools.

More information on how to utilize the tool may be found in their documentation, which you can access here.

Step 3: Creating an exportable 3D form

Hurray! We’ve already created a 3D shape that looks fantastic.

But we’re not quite finished yet. Now that we have our 3D object exported, we can use it to bring it to life in Adobe Dimension by animating it.

To export your object from Photoshop, go to 3D > Export 3D Layer and select ‘Wavefront OBJ’ as the 3D File Format from the 3D File Format drop-down menu.

You can keep all of the options at their default settings.

In Dimension, we will set up our scene in Step 4.

To finish up, let’s create up a cute little studio environment for our happy little items to call home.

Open Dimension and select File > New from the menu bar.

Set the resolution of your document to 1,920 x 1080 pixels at 300 dots per inch.

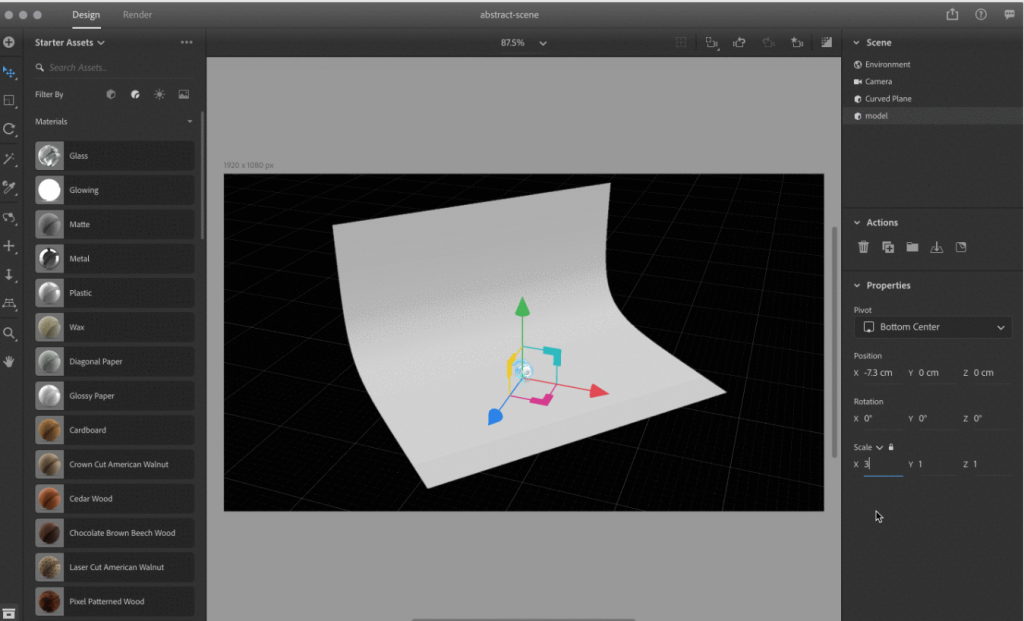

First, we’ll add a lovely curved plane to the composition.

You can get one for free by visiting this link.

Once you’ve downloaded the file, navigate to File > Import > 3D Model in Dimension (or click on the plus symbol in the left-hand menu) and select your 3D plane to be imported into Dimension.

Set the position X, Y, and Z values of the curved plane to zero if they are not already set to zero while the curved plane is selected.

Step 5: Importing our 3D abstract artwork from our computer

Following that, import your 3D object by following the same procedures as described previously.

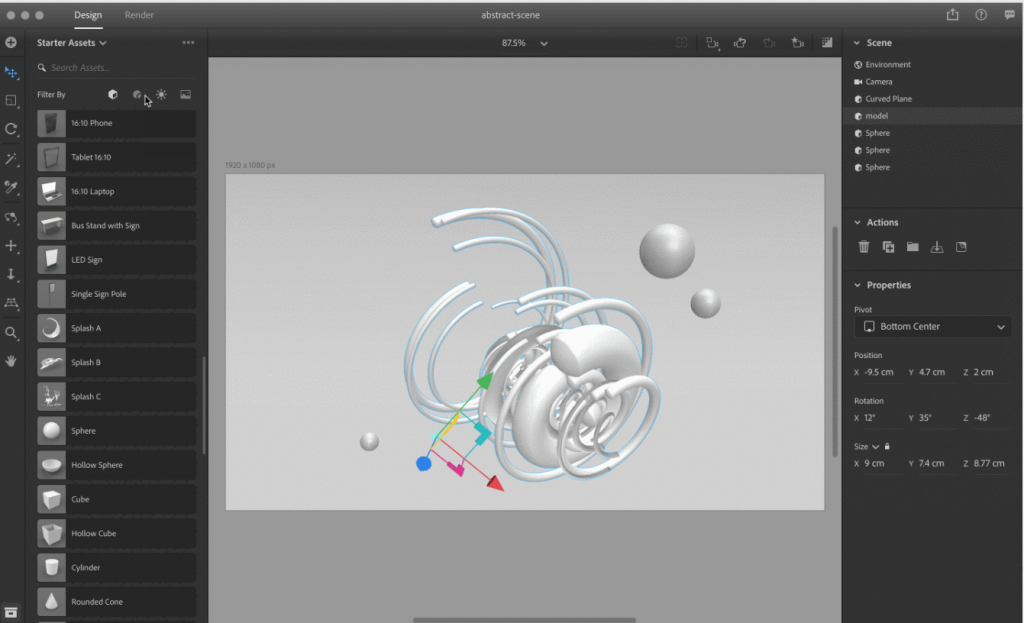

The Move, Rotate, and Scale tools can be used to position the object in the middle of your curving plane and move it into position once the 3D model has been selected.

To place your camera within the scene and bring your object into focus, use the rotate (1), pan (2), and zoom (3) tools on your keyboard.

Pro tip: To make the process even faster, hold down the (F) key while moving the camera to the present location of your object.

Let’s throw in a couple of extra elements for good measure.

You may find a wide variety of 3D assets to employ in your scene by selecting them from the Starter Assets Panel on the left side of the screen.

On the Adobe Stock 3D website, you may also find more items, both free and paid, that has been designed to function flawlessly with Dimension.

Let’s start by adding some spheres to the area around our abstract tubes in the Models tab.

It’s looking really well, doesn’t it?

Step 6: Setting Up Our Materials

We can now begin to have some fun with our object-making supplies.

This is the point at which our 3D design begins to come to life.

Select the Plastic material from the materials window on the left.

Then select a color of your choice, with the roughness set to 50% of its maximum value.

Setting the roughness to 50% will give our object a lovely gloss without creating too many reflections on the surface.

Now go ahead and add materials to the remainder of your scene as you see fit.

On Adobe Stock, you may also find other high-quality materials to utilize in your projects.

Pro tip: You may apply the same material to several objects at the same time by selecting all of your items and applying a material to them all at the same time.

Step 7: Designing our lighting system

In 3D images, lighting is the most important factor in distinguishing between an obvious graphic and a photorealistic 3D image.

The lighting presets in Adobe Dimension make it simple to produce lighting that reflects off your item in a realistic manner.

Due to the fact that Dimension uses image-based lighting, you have the option of either uploading your own image or using one of their lightings presets.

For our purposes, let’s go with the ‘Studio Light Pillars Dark A’ color scheme.

After that, you can experiment with the rotation numbers to find the lighting effect that best suits your needs and your scenario.

Lighting is essential for creating stunning 3D pictures, and establishing a good contrast between your designs may need some experimentation.

Pro Tip #1: Using the render preview to check how your scene is looking in real-time can be really beneficial.

Pro Tip #2: Adobe Stock 3D has a plethora of lighting settings to choose from.

Step 8: Configuring our digital camera

We can now use the adobe capture camera tools to create some intriguing angles and depth with our illustration by using the camera tools.

This will also give some depth of field to the photograph, making it more dynamic.

Simply experiment with different options such as Field of View, Focus, and Rotation to find what works best for you.

PRO HINT: You may use the bookmark function to keep different camera angles within your scene, which is really convenient.

Also available in the Camera options is the focus option, which may be used to add some depth of field to your vision.

Step 9: Creating a rendering of our scene

We’re getting close to the finish line! All that remains is for us to render our scene.

I recommend starting with the Low option in Dimension to get a sense of how your scene will look, and then moving up to a medium or high setting after you’re satisfied with the results.

PSD was the format I used for my output.

Tips from the pros: You may also export as a web link to share 360-degree views with stakeholders or embed on your portfolio’s website.

As a result of our render, we have this final product.

Consider the reflections, the shadows, the textures, and the shapes that have been created.

You did those 3d elements from nothing more than a few circles just minutes ago!

In the meantime, here’s what I came up with after some post-processing modifications in Photoshop (because what designer knows when to stop?):

The experiment, even more, to find out what works.

Having studied the fundamental principles of designing 3D models objects in Photoshop and displaying your objects in Dimension, you may apply these principles to more complicated designs in order to gain a better understanding of the process.

As I indicated at the outset of our guide, we’ve been experimenting with this technique with our Warped Universe graphic bundle.

Consider this adobe app 2D image from Warped Universe as an illustration:

Using Photoshop and Dimension, I created a 3D topographic graphic designer shape based on that illustration.

In order to create this background image, I used the “3D extrusion from depth map” tool in Photoshop software.

Depth maps are 3D geometric representations of an image created by combining the light and dark values of the adobe fonts image.

The stronger or more intense fast renders the 3D extrusion effect will be, the lighter the area of the image that is being extruded.

In order to do this, I just took the flat illustration above and added some clouds on top.

The imagery was then darkened and blurred as a result of my efforts.

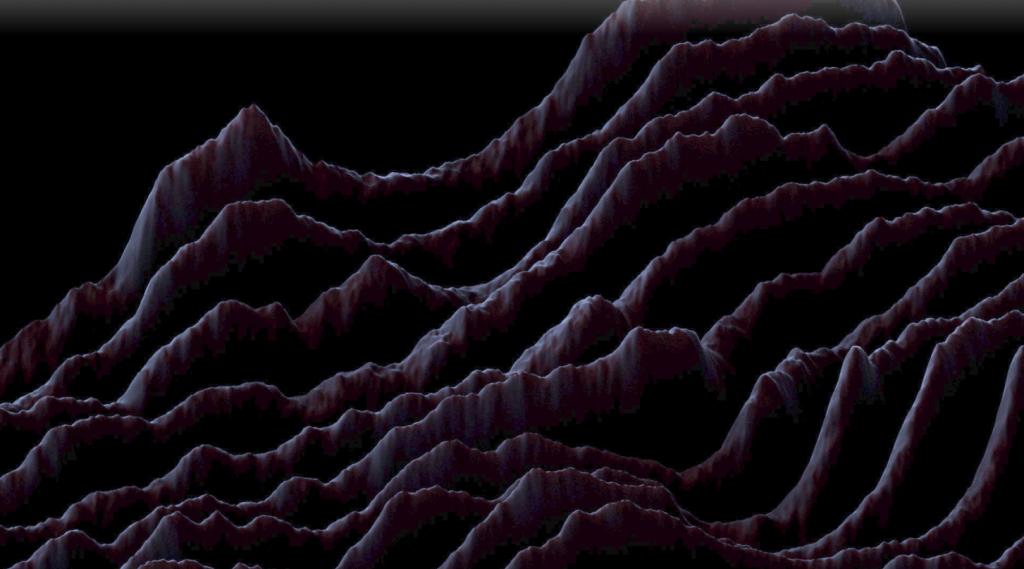

Using Photoshop, I was able to create the following outcome after converting the flat image to a 3D rendering extrusion depth map.

Here’s what it looks like in Dimension:

Additionally, you can use the depth map option in conjunction with the sphere preset to transform your flat photographs into spherical objects.

The following is the end result of converting a Warped Universe graphic into an abstract spherical object using Photoshop:

Using various light presets and materials, you may experiment with giving it new textures and styles, thus converting mockups it into a whole different image:

Now that you’ve learned the fundamentals, it’s up to you to decide how you’ll use and experiment with them.

Bring in a piece of your own flat illustration or design and stroll it through the process to see what it turns up to be.

This opens up a plethora of opportunities for your employees and, ideally, for your future career.

“There’s nothing wrong with having a tree as a friend,” stated Bob Ross, who likewise believes in the power of friendship.

I made a mistake and used the wrong quote.

“Talent is a highly pursued interest,” he explained.

“Anything that you’re willing to put in the effort to learn can be accomplished.”

Fortunately, thanks to Adobe Dimension, it is now much easier to follow this hobby.

Our Final Thoughts

I’ll just stop there and let you go explore Adobe Dimension on your own, but if you’re looking for more information about this new app from the team that brought us Photoshop and Illustrator, then be sure to check out their website.

You can also watch a video tour of all it has to offer right here!

Frequently Ask Questions

Originally posted on January 6, 2022 @ 8:38 pm
